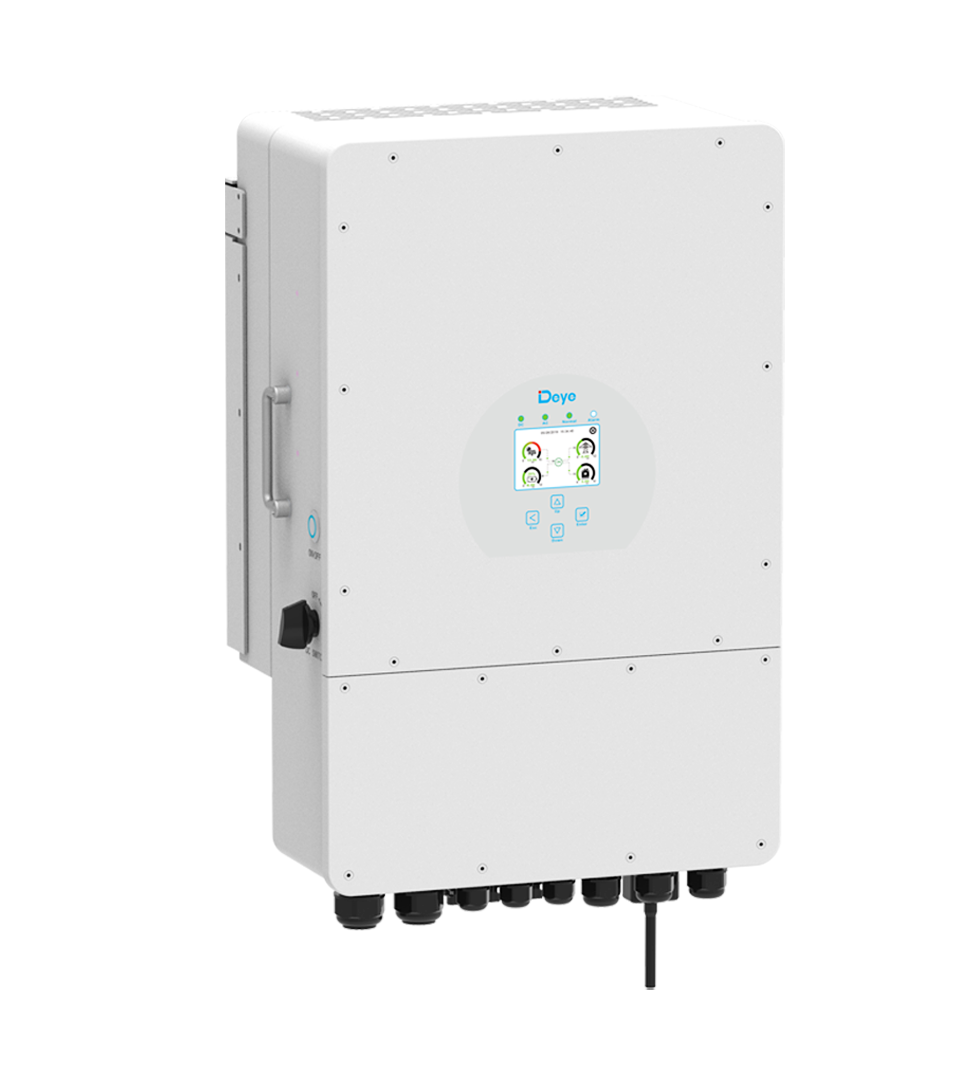

Deye SUN-8 SG04LP3 Three Phase 2 MPPT Hybrid Inverter

(0 reviews)

Sold by:
Inhouse product

Price:
Rs1,026,250.00 /Pc

Inverter Capacity:
Warranty:
Quantity:

Total Price:
Call Now
Share:

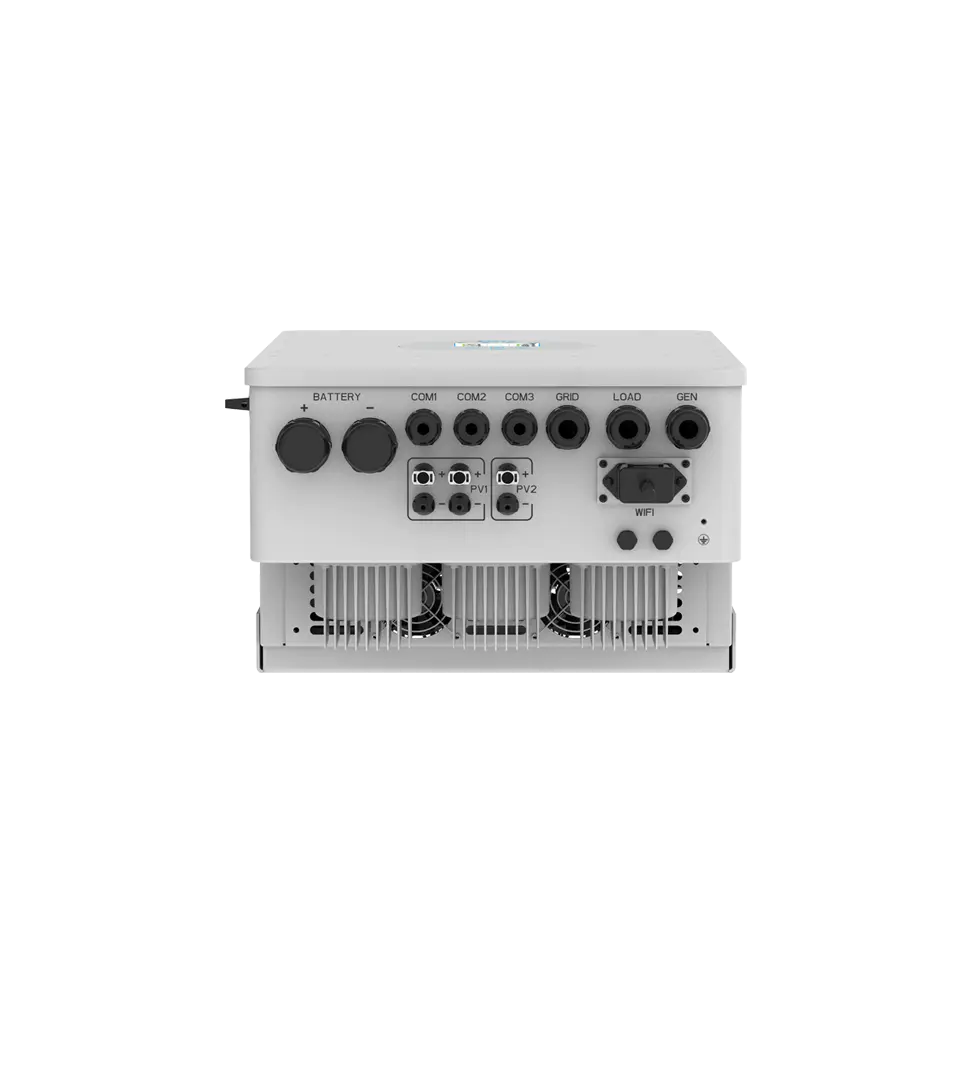

SUN 8K SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 190
Max. Discharging Current (A) 190
Charging Curve 3 Stages / Equalization
External Temperature Sensor Yes
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data

Max. DC Input Power (W) 10400
Rated PV Input Voltage (V) 550(160~800)
Start-up Voltage (V) 160
MPPT Voltage Range (V)
200-650
Full Load DC Voltage Range (V) 350-650
PV Input Current (A) 13+13
Max. PV ISC (A) 17+17
No.of MPP Trackers
2
No.of Strings per MPP Tracker 1+1
AC Output Data

Rated AC Output Active Power (W)
8000
Max AC Output Active Power (W)
8800
AC Output Rated Current (A) 12.1/11.6
Max AC Output  Current (A) 13.4/12.8
Max. AC Current (A) 18.2/17.4
Max Output short circuit current(A)
75
Max. Continuous AC Passthrough (A) 45

2 time of rated power, 10 S
Peak Power (offff grid)



0.8 leading to 0.8 lagging
Power Factor


Output Frequency and Voltage 50/60Hz;3L/N/PE 220/380Vac,230/400Vac
Grid Type Three Phase

<3% (of nominal power)
Total Harmonic Distortion (THD)



<0.5% In
DC Current Injection


Efficiency

Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection

Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,

Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,

Output Shorted Protection, Surge Protection
Surge protection DC Type II / AC Type Ⅲ
Certifications and Standards

Grid Regulation
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,

G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data

Operating Temperature Range (℃) -40~60℃, >45℃ Derating
Cooling Smart Cooling
Noise (dB) <45 dB
Communication with BMS RS485; CAN
Weight (kg) 33.6
Size (mm) 422W×702H×281D
Protection Degree IP65
Installation Style Wall-mounted
Warranty
5 Years
