The innovative design of the SUN3K-G04P1-AM1 is not only easy to install, but also allows for quick DC and AC connections. E.g. it weighs just 4.8 kg. Commissioning is equally easy, because the integrated user interface (local LCD display and buttons) makes it possible to choose the necessary settings quickly.
Model |
SUN-3K-G04P1-AM1 |
Input Side |
|
Max. DC Input Power(kW) |
3.9 |
Max. DC Input Voltage (V) |
550 |
Start-up DC Input Voltage(V) |
80 |
MPPT Operating Range(V) |
70-500 |
Max. DC Input Current(A) |
13 |
Max. Short Circuit Current (A) |
19.5 |
No.of MPP
Trackers |
1 |
No.of Strings per MPP Tracker |
1 |
Output Side |
|
Rated Output Power(kW) |
3 |
Max. Active Power(kW) |
3.3 |
Nominal Output Voltage / Range (V) |
L/N/PE
220/230V(Optional) |
Rated Grid Frequency(Hz) |
50/60(Optional) |
Operating Phase |
Single phase |
Rated AC Grid Output Current(A) |
13.7/13.1 |
Max. AC Output Current(A) |
15/14.4 |
Output Power Factor |
0.8 leading to
0.8 lagging |
Grid Current THD |
<3% |
DC Injection Current(mA) |
<0.5% |
Grid Frequency Range |
47~52 or
57~62(Optional) |
Efficiency |
|
Max.Efficiency |
97.50% |
Euro Efficiency |
97.30% |
MPPT Efficiency |
>99% |
Protection |
|
DC Reverse-Polarity Protection |
Yes |
AC Short Circuit Protection |
Yes |
AC Output Overcurrent Protection |
Yes |
Output Overvoltage Protection |
Yes |
Insulation Resistance Protection |
Yes |
Ground Fault Monitoring |
Yes |
Islanding Protection |
Yes |
Temperature Protection |
Yes |
Integrated DC Switch |
Yes |
Remote software upload |
Yes |
Remote change of operating
parameters |
Yes |
Surge protection |
DC Type lI/AC
Type ll |
General Data |
|
Size(mm) |
280W×272.5H×184D |
Weight(kg) |
4.8 |
Topology |
Transformerless |
Internal Consumption |
<1W(Night) |
Running Temperature |
-25~65℃,>45℃ Derating |
Ingress Protection |
IP65 |
Noise Emission(Typical) |
<35dB |
Cooling Concept |
Natural cooling |
Max. Operating Altitude Without
Derating |
2000m |
Warranty |
5years |
Grid Connection Standard |
CEI 0-21,
VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD
1699, C10-11 |
Operating Surroundings Humidity |
0-100% |
Safety EMC/Standard |
IEC/EN
61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Features |
|

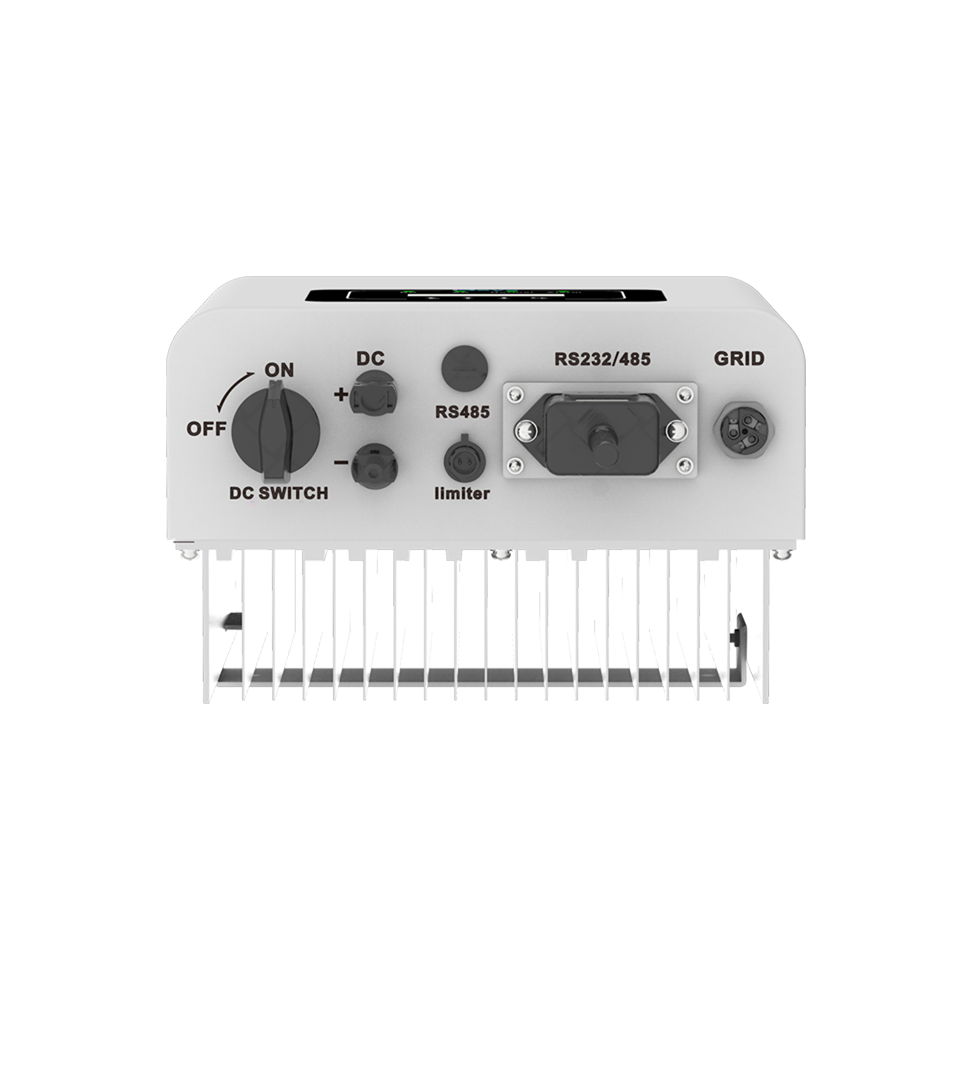

DC Connection |
MC-4 Mateable |
AC Connection |
IP65 Rated plug |
Display |
LCD1602 |
Interface |
RS485/RS232/Wifi/LAN |
